Year  M  D  h  m  s  Event Type     Ph   Dur dMag  %Ill   Sep  PA  MinD      h  m  s   h  m  s   h  m  s   h  m  s   h  m  s   h  m  s   h  m  s
2009  5 23  0 37 35  (II) occ (III)  P   333  0.2  79.8  94.8  68  0.507 |             0 34 49             0 37 35             0 40 21

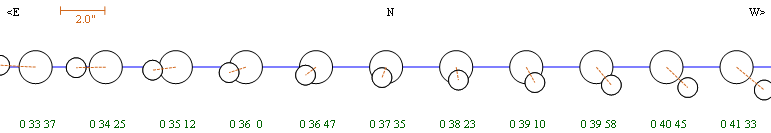

Data and diagrams created with Occult 4 from Dave Herald

Jupiter system - 2009/05/23

Starmap created with Guide 8 from Bill J Gray.

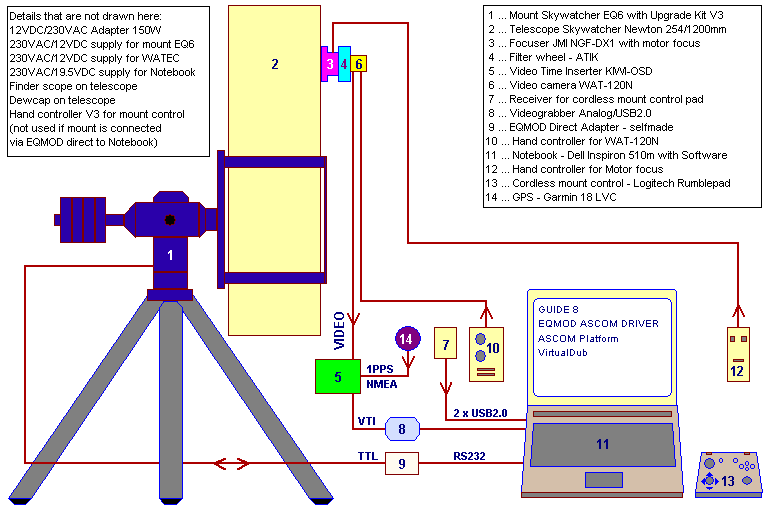

The setup for occultation recording

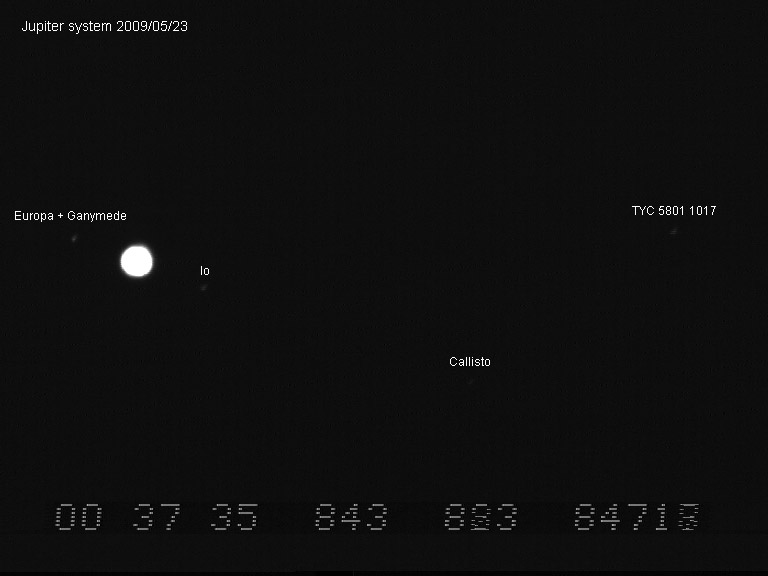

CCIR (PAL) full size video image 768x576

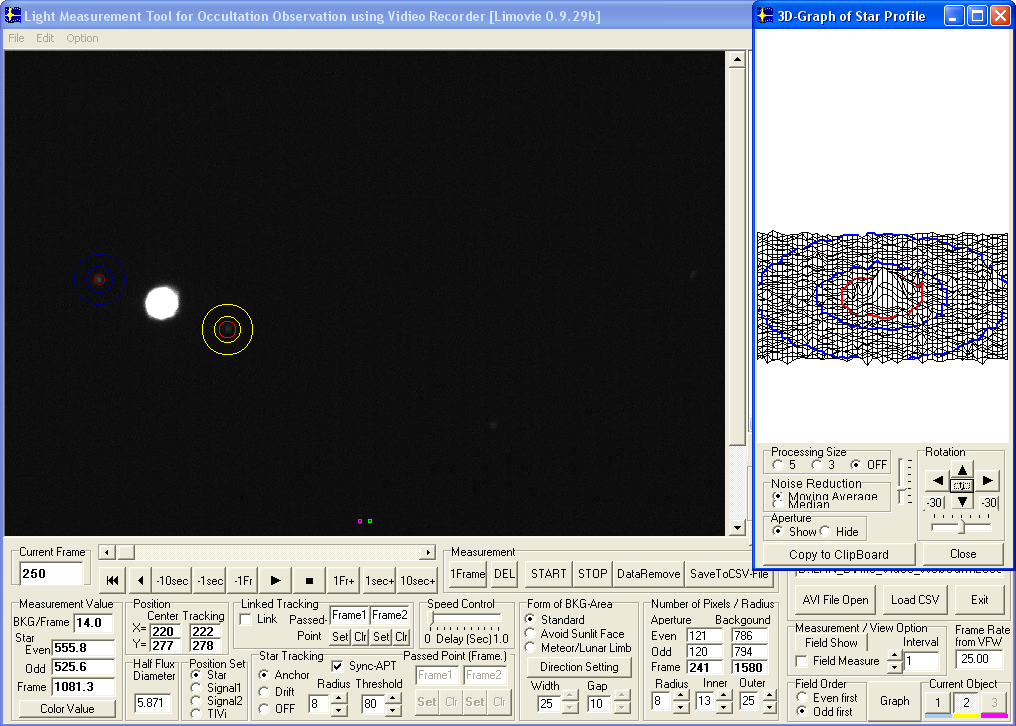

Limovie settings

MUTUAL OCCULTATION - REPORT

MUTUAL OCCULTATION - REPORT
EAON & IOTA-ES
EUROPEAN ASTEROIDAL OCCULTATION NETWORK
INTERNATIONAL OCCULTATION TIMING ASSOCIATION EUROPEAN SECTION

1.DATE: 2009/05/23
Event: Jupiter system 2O3; Europa (II) occults Ganymede (III)

2.OBSERVER:
Name: Gerhard Dangl
Phone: ++43-(0)2842-53908
Address: AUSTRIA, A-3830, Nonndorf 12
E-mail: gerhard@dangl.at

3.OBSERVING STATION:
Nearest city: Waidhofen/Thaya
Latitude:  N 48 47 28.4 (WGS84)
Longitude: E 15 13 59.8 (WGS84)
Altitude:  601m         (WGS84)
Single/Multiple: Single

4.TIMING OF EVENTS:
Type of event:
"S"tart observation; "I"nterrupt-"s"tart; "D"isappearance;
"B"link; "F"lash; "E"nd observation; "I"nterrupt-"e"nd;
"R"eappearance; "O"ther (specify)

Recording time HH:MM:SS UTC
S:    00:29:59
E:    00:40:30

5.TELESCOPE:
Type: Newton
Focal length: 1200mm
Aperture: 254 mm
Magnification: video/primary focus/FOV 18.3'x13.7' (768x576, 1.43"x1.43" per pixel)
Mount: Equatorial
Motor drive: Yes

6.TIMING & RECORDING:
Timekeeping: GPS 1PPS Garmin 18x LVC + KIWI-OSD
Sensor/Camera: WAT-120N, CCIR, 1/2" Sony CCD-Sensor ICX419ALL, GAMMA=OFF (linear)
Mode of recording: It=20ms (50 Img/s), Video CCIR, AVI, YUY2, Huffyuv,
Device of recording: TIS DFG/USB2-lt Videograbber USB2.0, Notebook Harddisk
Time insertion: KIWI-OSD

7.OBSERVING CONDITIONS:
Atmospheric transparency: fair
Wind: 0 - 0.5 m/s
Object image stability: fair
Temperature: 280 Kelvin (+07 deg Celsius)

8.ADDITIONAL COMMENTS:
Object height above local horizon at recording start: 05 deg
Object height above local horizon at recording end:   07 deg

Only Clear glass filter (Astronomik) for CCD protection was used.

Video evaluation accomplished with VirtualDub1.8.6, AviSynth2.5,
Limovie0.9.29b, LimovieAverage and Excel

3-D Position and timing
Garmin GPS18x LVC
Receiving 10 satellites
Horizontal Dilution of Precision 0.9
Geoidal separation 44.5m (Altitude 556.4MSL + 44.5 = 600.9m in WGS84 datum)

Gerhard Dangl
gerhard@dangl.at
www.dangl.at/

The evaluation of the measurement data

The evaluation of the measurement data from recorded video was done with the software packages below:

-VirtualDub
-Limovie
-Avisynth
-LimovieAverage
-Help text, using LimovieAverage with mutual events

Download of measurement data and results in Excel file format

-Excel File, raw data, 25 measurement points per second (3.71 MB)

-Excel File, binning 8 data points (588 KB)

-Excel File, binning 16 data points (306 KB)

-Excel File, binning 32 data points (165 KB)

-Excel File, binning 64 data points (114 KB)

-Excel File, binning 128 data points (91 KB)

The diagrams from the Excel files in overview

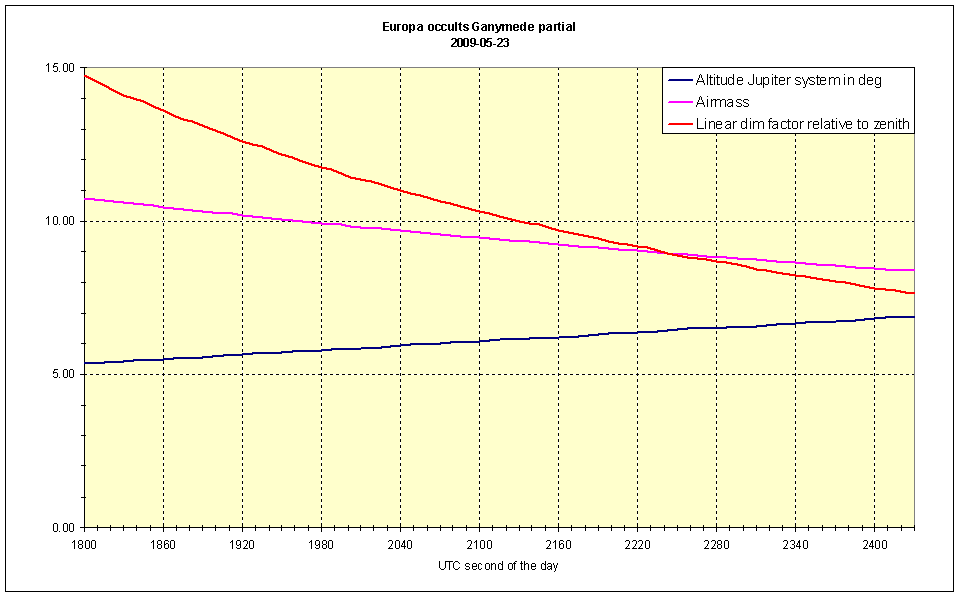

-Diagram Jupiter system, Altitude and airmass number

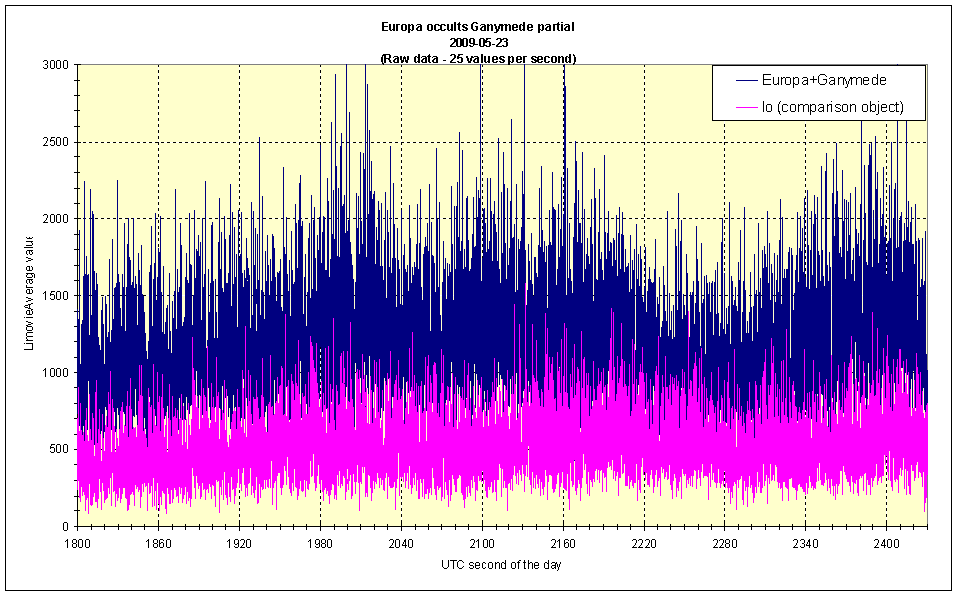

-Diagram raw data, 25 measurement points per second

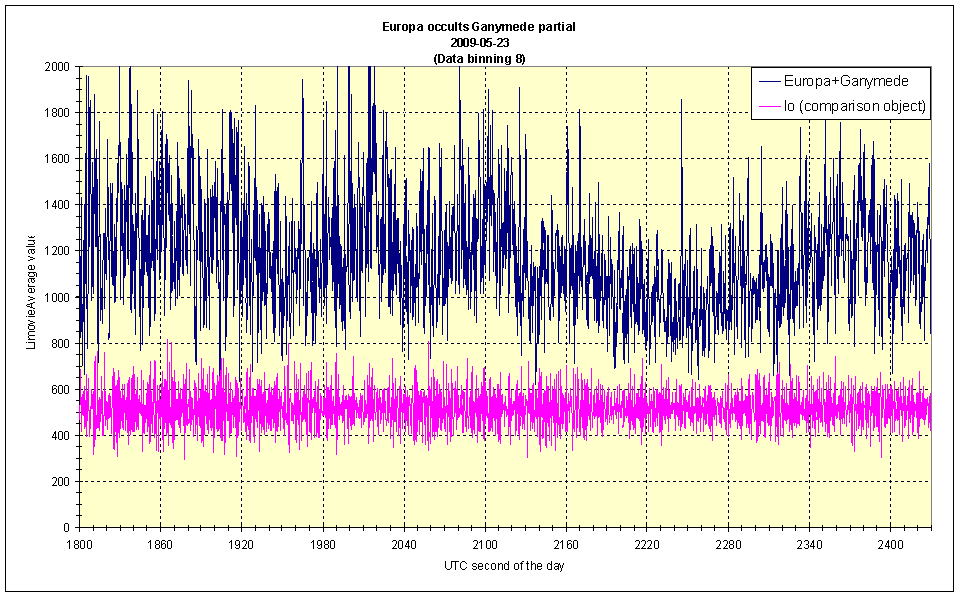

-Diagram binning 8 data points

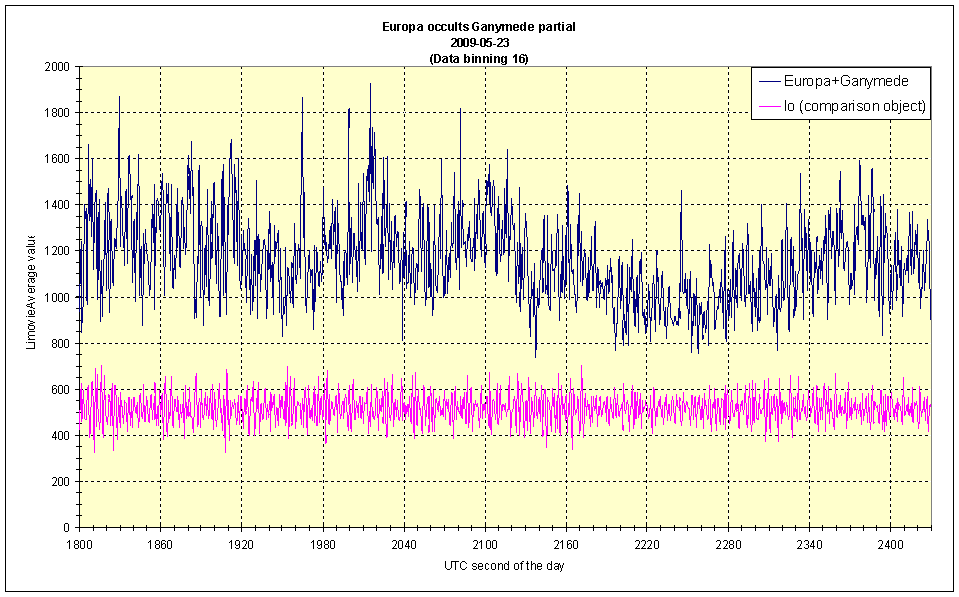

-Diagram binning 16 data points

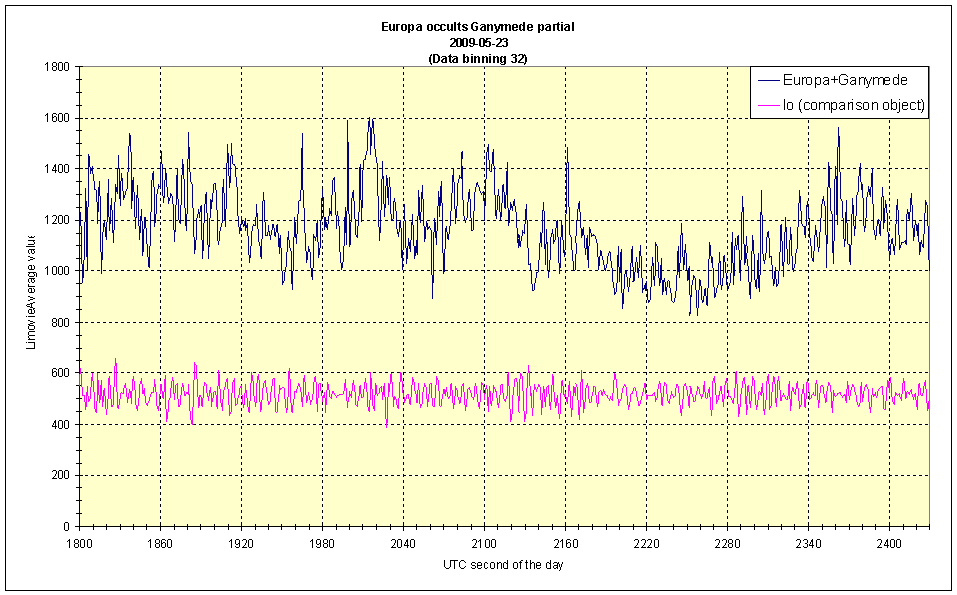

-Diagram binning 32 data points

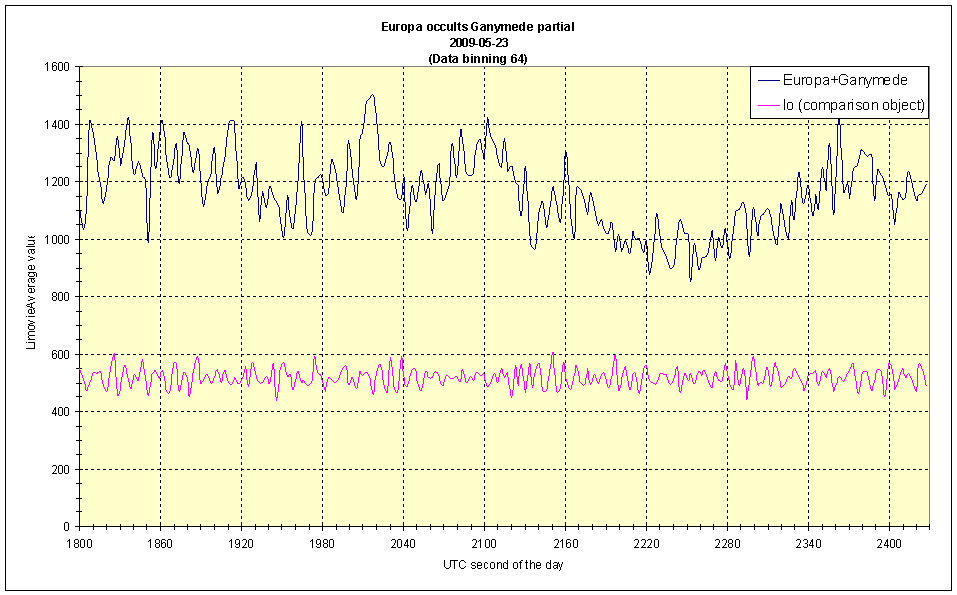

-Diagram binning 64 data points

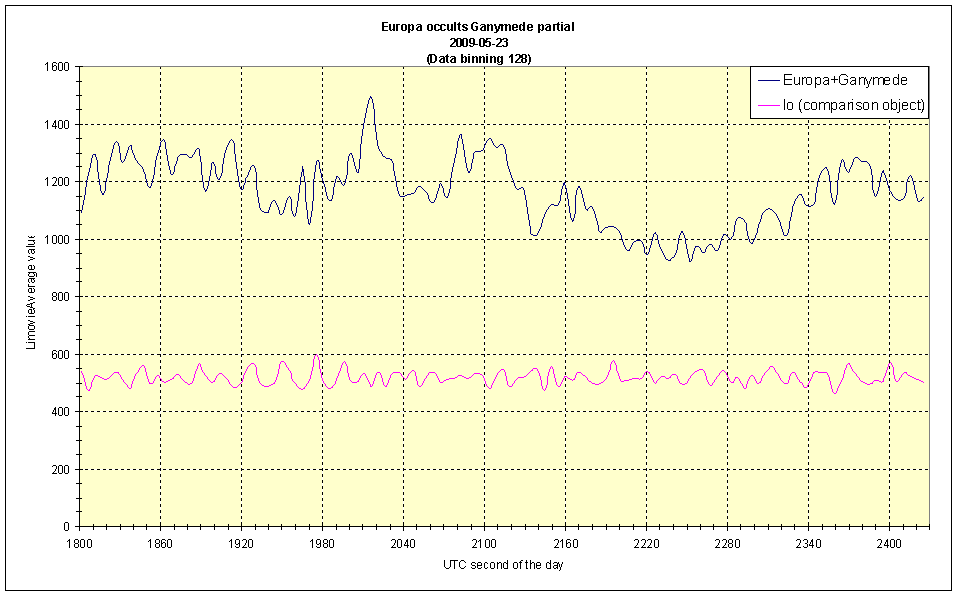

-Diagram binning 128 data points
